Galvanized Double Wall Bundy Tube Zinc Coating For Automobile Brake

Brand Name : Torich

Model Number : GM123M, GM124M, TS7600G, GB 11258-89

Certification : ISO 9001 ISO14001

Place of Origin : China

MOQ : 100kgs

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 2000tons per month

Delivery Time : 6-8 weeks

Packaging Details : In bundles or according to customer's request

Application : for Automobile Brake System

Alloy or not : acc to customer's requirement

Technique : Welded

Thickness : 0.5-2mm

Standard : ASTM

Surface treatment : Galvanized, PVF, Nylon etc

Contact Now

TORICH With Zinc Coating For Automobile Brake Double Wall Galvanized Bundy Tube

1. Standard

GM123M, GM124M, TS7600G, GB 11258-89

2. Steel Grade/Steel Material/Steel Number:

Low carbon steel, such as SPCCBLDBLC

3. Raw Material:

Cold rolled low carbon steel strip

4. Characteristic:

Good Surface Quality, Uniform coating

No coating burr

Stable quality

Excellent corrosion resistance

TORICH QUALITY ASSURANCE

5. Application:

Brake tube on automobile

6. Specifications:

OD(mm) OD tolerance(mm) WT(mm) WT tolerance(mm) Coil length

4.76

(3/16”)

+/-0.10 or as per customer’s requirement

0.7

+/-0.07

600-1000m/coil
6
6.35

8

(5/16”)

9.5

(3/8”)
10

11.1

(7/16”)
12

12.7

(1/2”)
8

1

+/-0.1
10
12


7. Mechanical properties:

Tensile Stregth (min) 270MPa
Yield Stregth (min) 180 MPa
Elongation (min) 14%


8. Coating:

Type Thickness Salt spray test time
white zinc coating 8μm 72h
color zinc coating 8μm 72h
olive green coating 8μm 180h
PVF coating white zinc 8μm + PVF 20μm 1000h
nylon coating white zinc 8μm + nylon 40μm 10000h


9. Packing: In coil, in wooden box with seaworthy packing

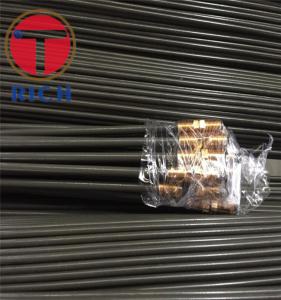

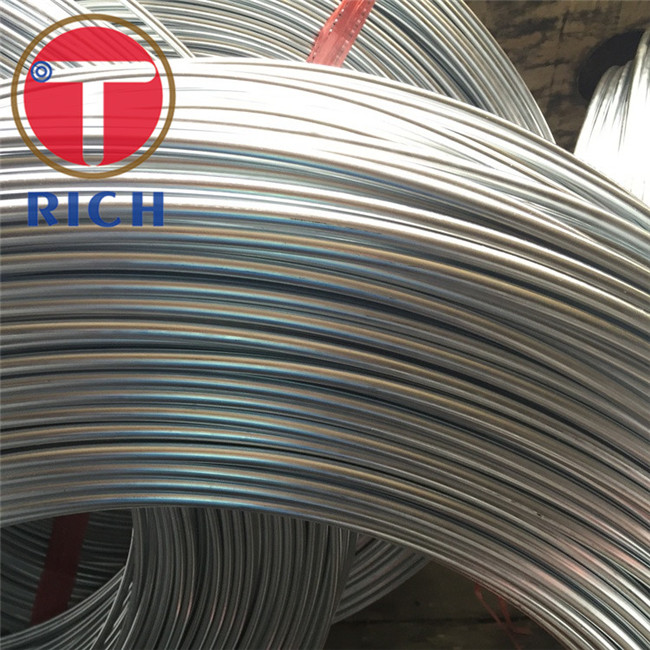

10. Product photos:

Galvanized Double Wall Bundy Tube Zinc Coating For Automobile Brake

Galvanized Double Wall Bundy Tube Zinc Coating For Automobile Brake
